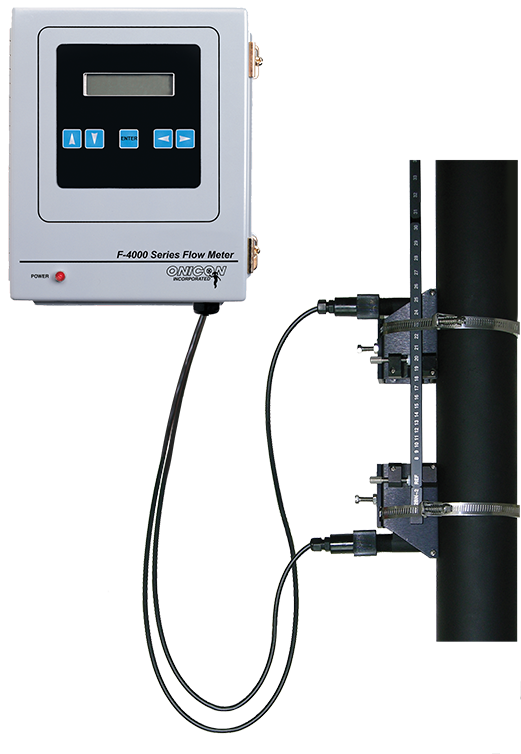

Configuring Totalizer Pulse in ONICON F-4200

This video shows the step-by-step process for changing the value of each pulse.  Keep in mind the meter will automatically limit the pulse weight selection based on the flow rates.  It will not let you select resolutions that are too large or too fast.  Most of the meters are set up as KGAL.   Below is a quick reference for typical settings.

Totalizer Scaling: +KGAL

Resolution:

0000000x = 1000 Gal/pulse

000000x0 = 100 Gal/pulse

00000x00 = 10 Gal/pulse



Totalizer Scaling: +Gal

Resolution:

0000000x = 1 Gal/pulse
